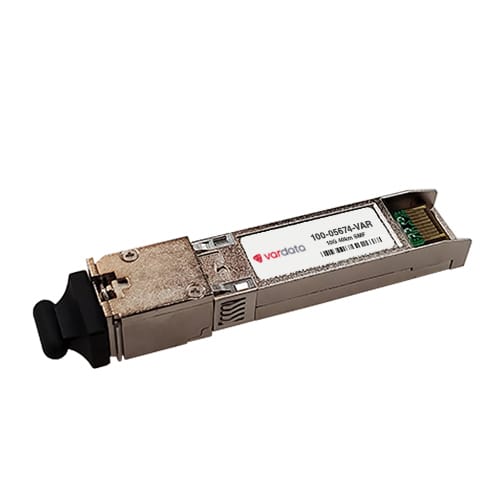

Calix SFP-DD XGS-PON OLT Transceiver – N2/C+ Combo, 20/60 km, Industrial (100-05674-VAR)
Dual 10G/10G | 1577/1270 nm | 20 km / 60 km Combo | Single-Mode | SFP-DD | OEM Compatible
- Part Number100-05674-VAR
- Form Factor SFP-DD (Double Density Small Form-factor Pluggable)
- Application XGS-PON OLT
- Channel Configuration Dual Channel (Combo)
- Data Rate 10 Gbps Downstream / 10 Gbps Upstream per channel (symmetrical)
- Standard XGS-PON
- Optical Class N2 / C+ Combo
- Fiber Type Single-Mode Fiber (SMF)
- Wavelengths 1577 nm (Downstream) / 1270 nm (Upstream)
- Max Reach / Distance Up to 20 km (N2) / Up to 60 km (C+)
- Connector Type Duplex LC (platform dependent)
- Media Optical Fiber
- Temperature Rating Industrial (-40°C to +85°C typical)
- Hot-Swappable Yes
- Platform Compatibility Calix XGS-PON OLT platforms supporting SFP-DD
- Coding OEM Compatible
