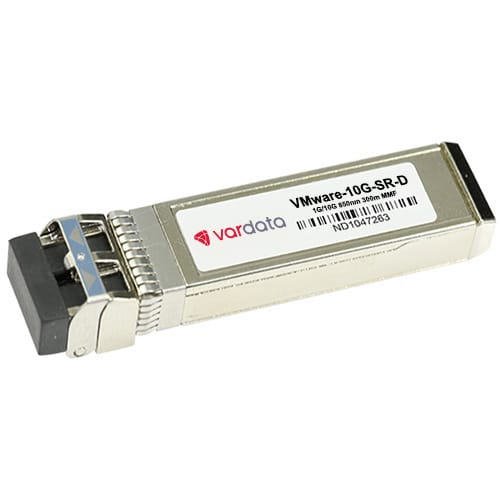

VMware SFP+ Transceiver – 10GBase-SR Dual Rate (VMware-10G-SR-D)
10G/1G | 850 nm | 300 m | Multimode | SFP+
- Part Number VMware-10G-SR-D
- Form Factor SFP+ (Small Form-factor Pluggable Plus)
- Data Rate 10 Gigabit Ethernet / 1 Gigabit Ethernet (dual rate)
- Standards 10GBase-SR / 1000Base-SX
- Fiber Type Multimode Fiber (MMF)
- Wavelength 850 nm
- Max Reach / Distance Up to 300 m*
- Connector Type Duplex LC
- Media Optical Fiber
- Hot-Swappable Yes
- DOM/DDM Support Yes (Digital Optical Monitoring, typical)
- Operating Temperature Commercial (0 °C to 70 °C typical)
- Compatibility VMware-compatible SFP+ and 1G SFP ports (where supported)
- Compliance Standard commercial (TAA version available separately), SFF-8084, SFF-8472
*Typically 300 m on OM3, up to 400 m on OM4
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
