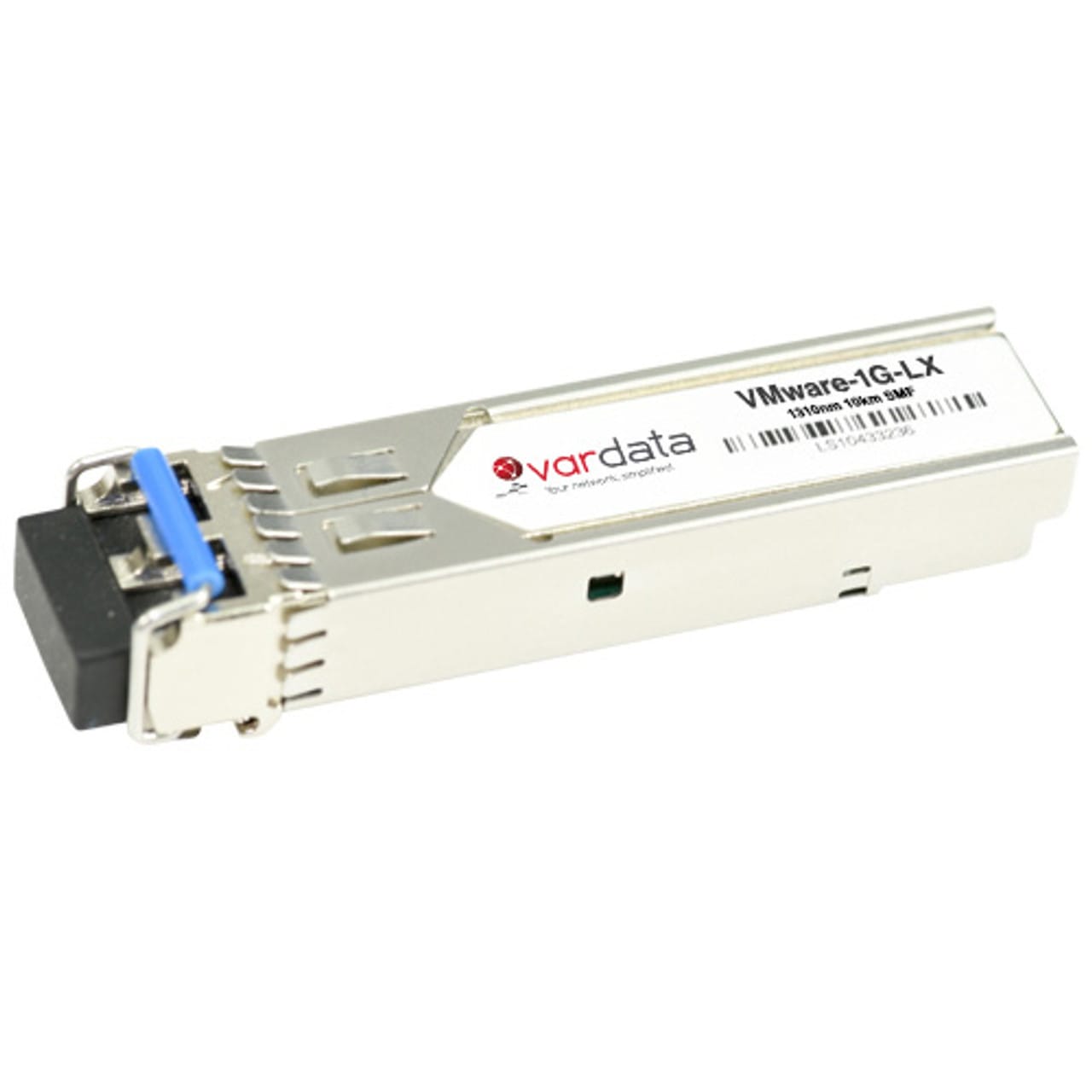

VMware SFP Transceiver – 1000Base-LX (VMware-1G-LX)
1G | 1310 nm | 10 km | Single-Mode | SFP
- Part Number VMware-1G-LX
- Form Factor SFP (Small Form-factor Pluggable)
- Data Rate 1 Gigabit Ethernet (1.25 Gbps line rate)
- Standard 1000Base-LX
- Fiber Type Single-Mode Fiber (SMF)
- Wavelength 1310 nm
- Max Reach / Distance Up to 10 km
- Connector Type Duplex LC
- Media Optical Fiber
- Hot-Swappable Yes
- DOM/DDM Support Yes (Digital Optical Monitoring, typical)
- Operating Temperature Commercial (0°C to 70°C typical)
- Compatibility VMware-compatible SFP ports
- Compliance SFF-8083, SFF-8472
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
