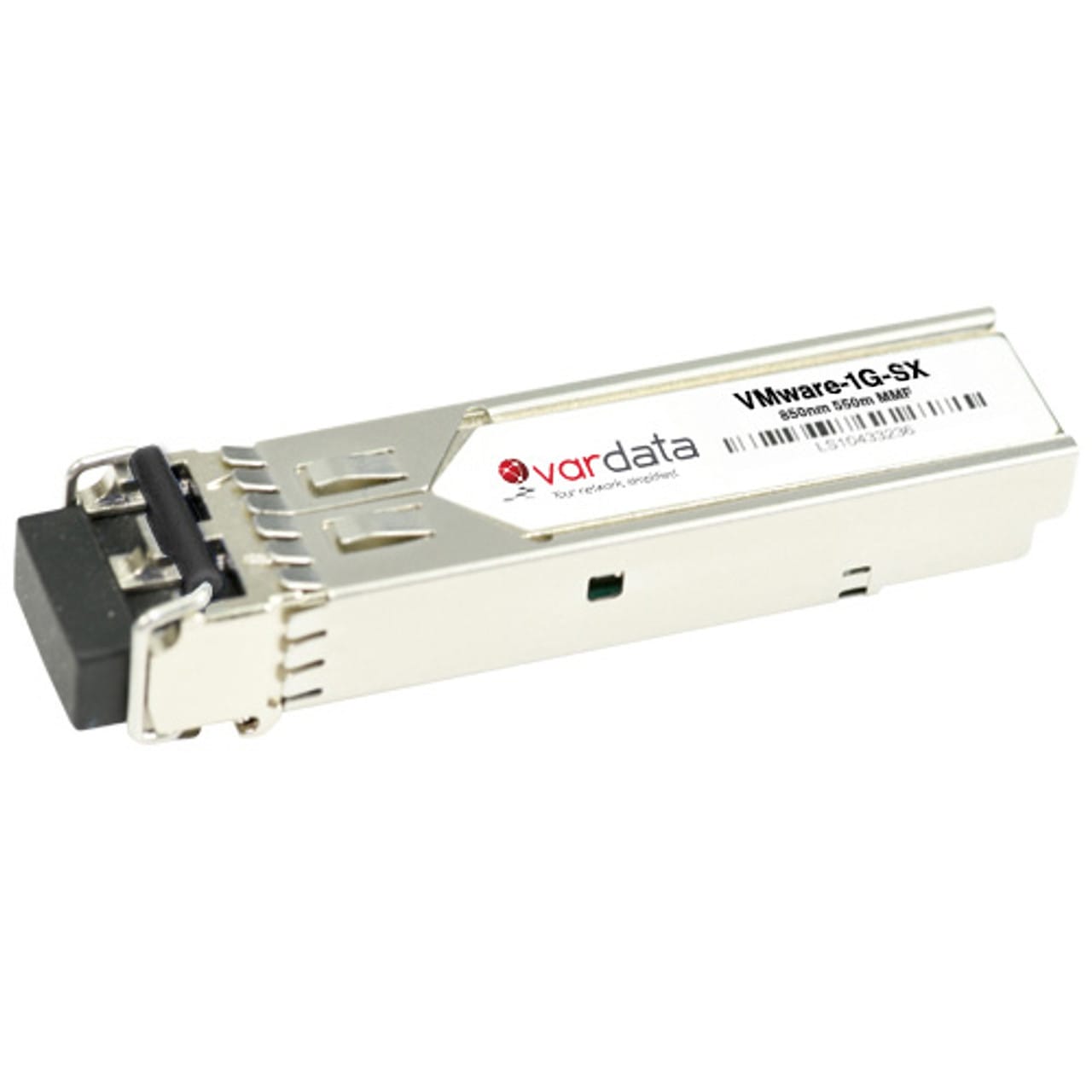

VMware SFP Transceiver – 1000Base-SX (VMware-1G-SX)
1G | 850 nm | 550 m | Multimode | SFP
- Part Number VMware-1G-SX
- Form Factor SFP (Small Form-factor Pluggable)
- Data Rate 1 Gigabit Ethernet (1.25 Gbps line rate)
- Standard 1000Base-SX
- Fiber Type Multimode Fiber (MMF)
- Wavelength 850 nm
- Max Reach / Distance Up to 550 m
- *Connector Type Duplex LC
- Media Optical Fiber
- Hot-Swappable Yes
- DOM/DDM Support Yes (typical)
- Operating Temperature Commercial (0°C to 70°C typical)
- Compatibility VMware-compatible SFP ports
- Compliance SFF-8083, SFF-8472
*Reach depends on fiber grade (typically 220–275 m on OM1/OM2, up to 550 m on OM3/OM4)
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
