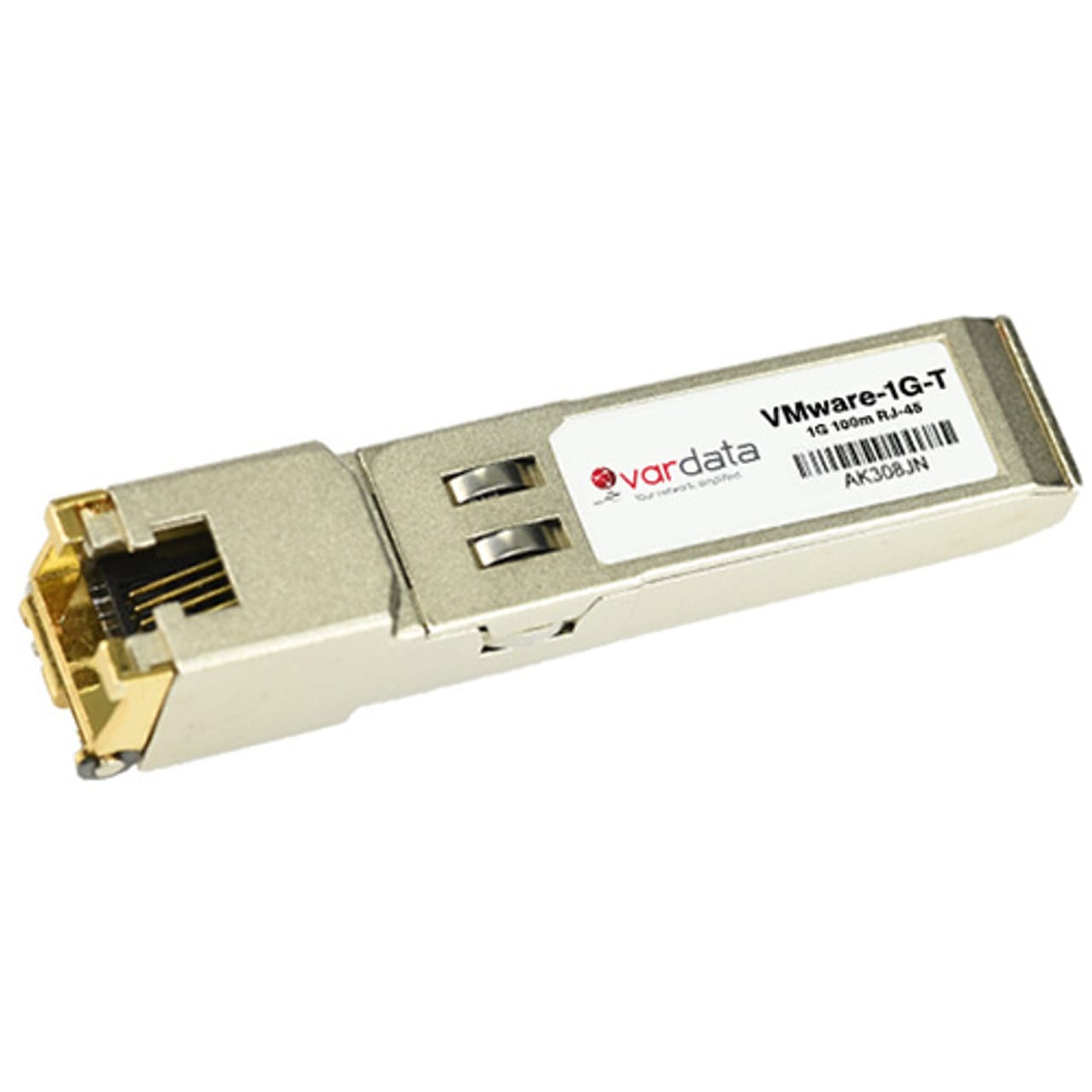

VMware SFP Transceiver – 1000Base-T (VMware-1G-T)
1G | Copper | RJ45 | 100 m | SFP
- Part Number VMware-1G-T
- Form Factor SFP (Small Form-factor Pluggable)
- Data Rate 10/100/1000 Mbps (Gigabit Ethernet)
- Standard 1000Base-T (IEEE 802.3ab)
- Media Type Copper (Twisted Pair Ethernet)
- Max Reach / Distance Up to 100 m
- Connector Type RJ45
- Cable Type Cat5e / Cat6 / Cat6a
- Hot-Swappable Yes
- Power Consumption Higher than optical SFPs (typical for copper modules)
- Operating Temperature Commercial (0°C to 70°C typical)
- Compatibility VMware-compatible SFP ports
- Compliance IEEE 802.3
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
