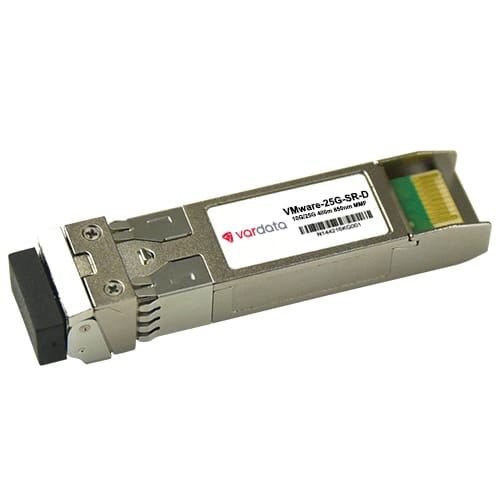

VMware SFP28 Transceiver – 25GBase-SR Dual Rate (VMware-25G-SR-D)
25G/10G | 850 nm | 400 m | Multimode | SFP28
- Part Number VMware-25G-SR-D
- Form Factor SFP28 (Small Form-factor Pluggable 28)
- Data Rate 25 Gigabit Ethernet / 10 Gigabit Ethernet (dual rate)
- Standards 25GBase-SR / 10GBase-SR
- Fiber Type Multimode Fiber (MMF)
- Wavelength 850 nm
- Max Reach / Distance Up to 400 m*
- Connector Type Duplex LC
- Media Optical Fiber
- Hot-Swappable Yes
- DOM/DDM Support Yes (Digital Optical Monitoring, typical)
- Operating Temperature Commercial (0°C to 70°C typical)
- Compatibility VMware-compatible SFP28 and SFP+ ports (where supported)
- Compliance IEEE 802.3, SFF-8402, SFF-8432, SFF-8472, RoHS 6
*Typically 300 m on OM3, up to 400 m on OM4
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
