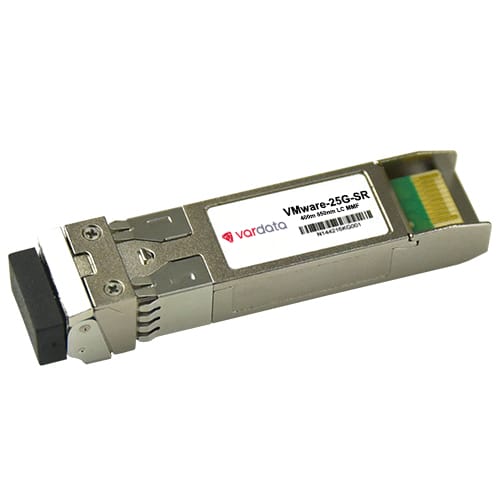

VMware SFP28 Transceiver – 25GBase-SR (VMware-25G-SR)
25G | 850 nm | 100 m | Multimode | SFP28
- Part Number VMware-25G-SR
- Form Factor SFP28 (Small Form-factor Pluggable 28)
- Data Rate 25 Gigabit Ethernet
- Standard 25GBase-SR
- Fiber Type Multimode Fiber (MMF)
- Wavelength 850 nm
- Max Reach / Distance Up to 100 m*
- Connector Type Duplex LC
- Media Optical Fiber
- Hot-Swappable Yes
- DOM/DDM Support Yes (Digital Optical Monitoring, typical)
- Operating Temperature Commercial (0°C to 70°C typical)
- Compatibility VMware-compatible SFP28 ports
- Backward Support Often supports 10G operation on compatible hardware
*Typically 70 m on OM3, up to 100 m on OM4
All parts are tested for traffic functionality per supported layer 2/3 protocol, DOM/DDM threshold and calibration, EEPROM MSA value verification, serial number verification & optical cleanliness.
